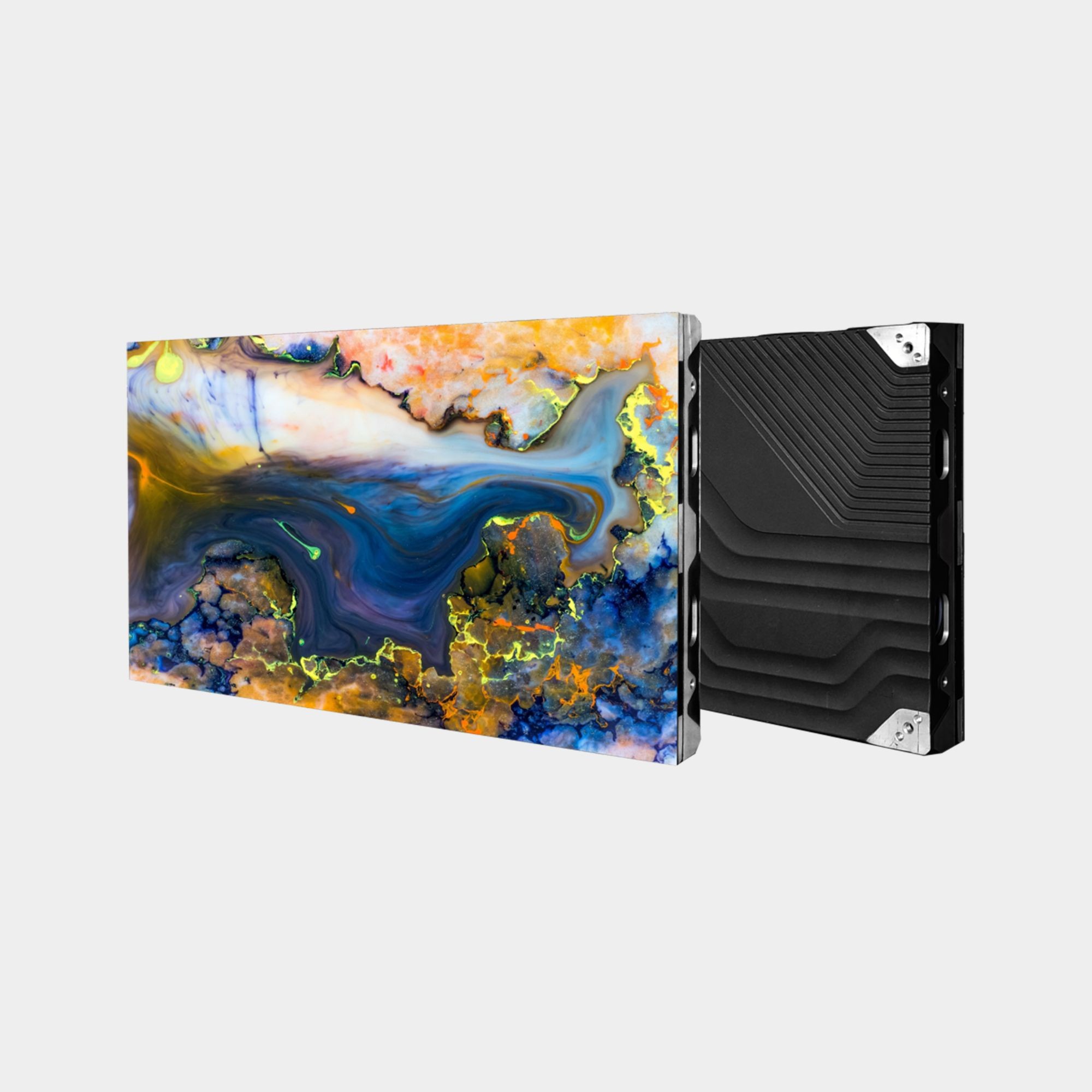

DH系列LED小间距显示屏

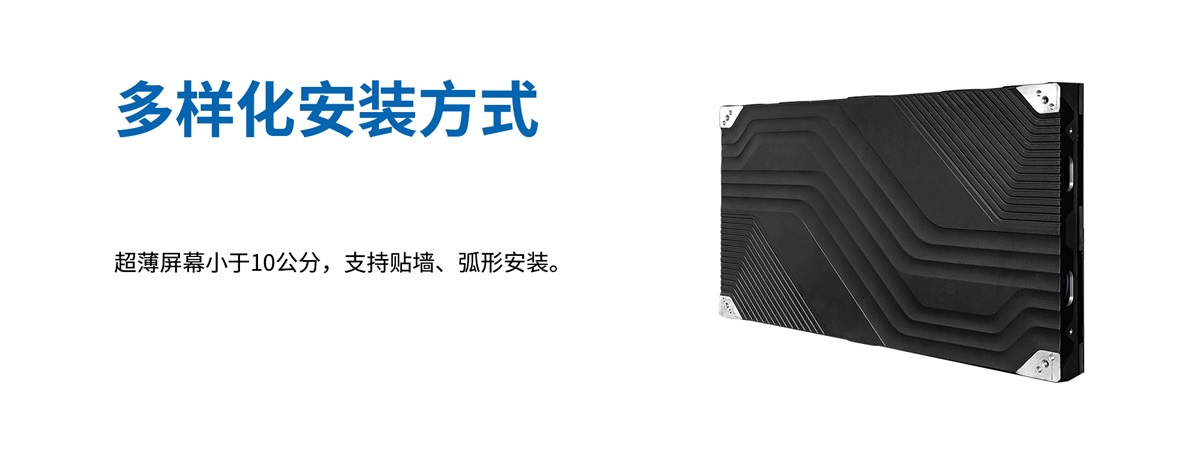

1.箱体轻薄设计，，，，，，，浅易雅观，，，，，，，搬运装置更便捷；；；；；；

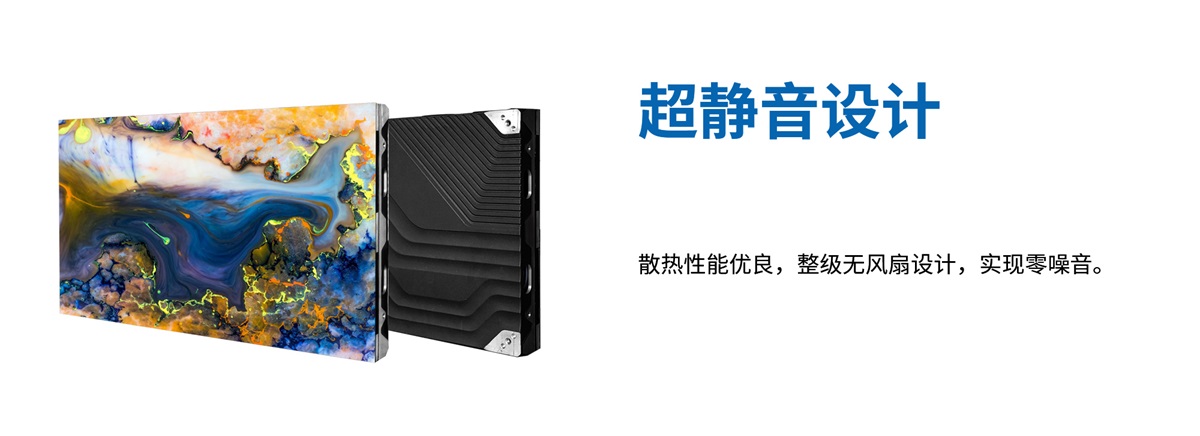

2.接纳压铸铝一体成型设计制造，，，，，，，自身散热速率快；；；；；；

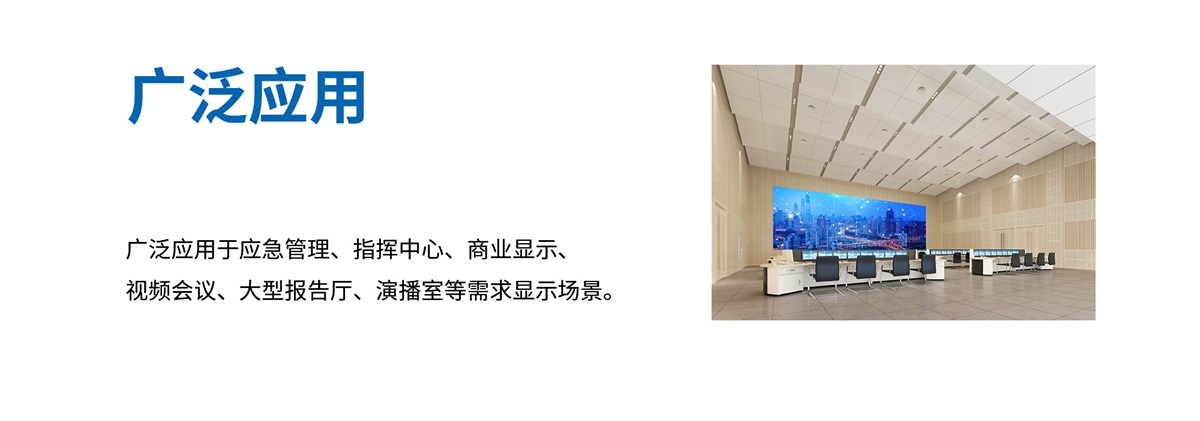

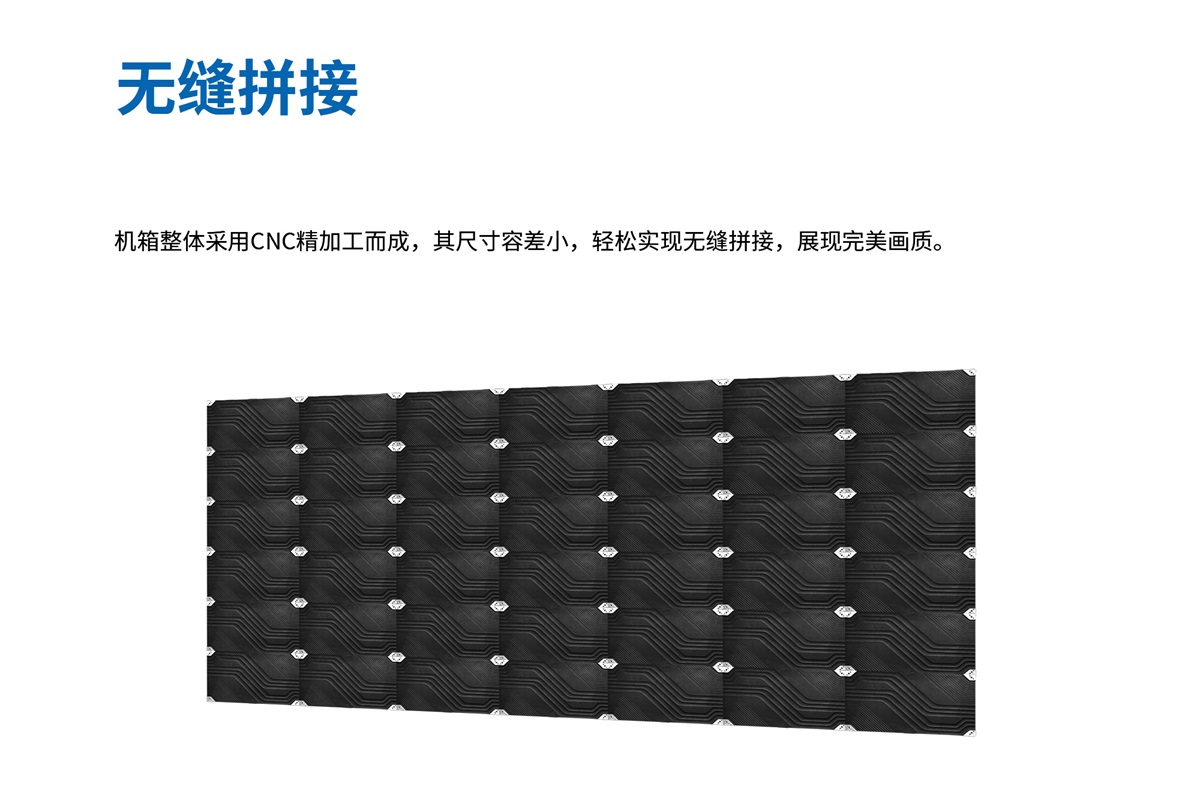

3.可恣意尺寸无缝无限拼接，，，，，，，知足差别场合需求；；；；；；

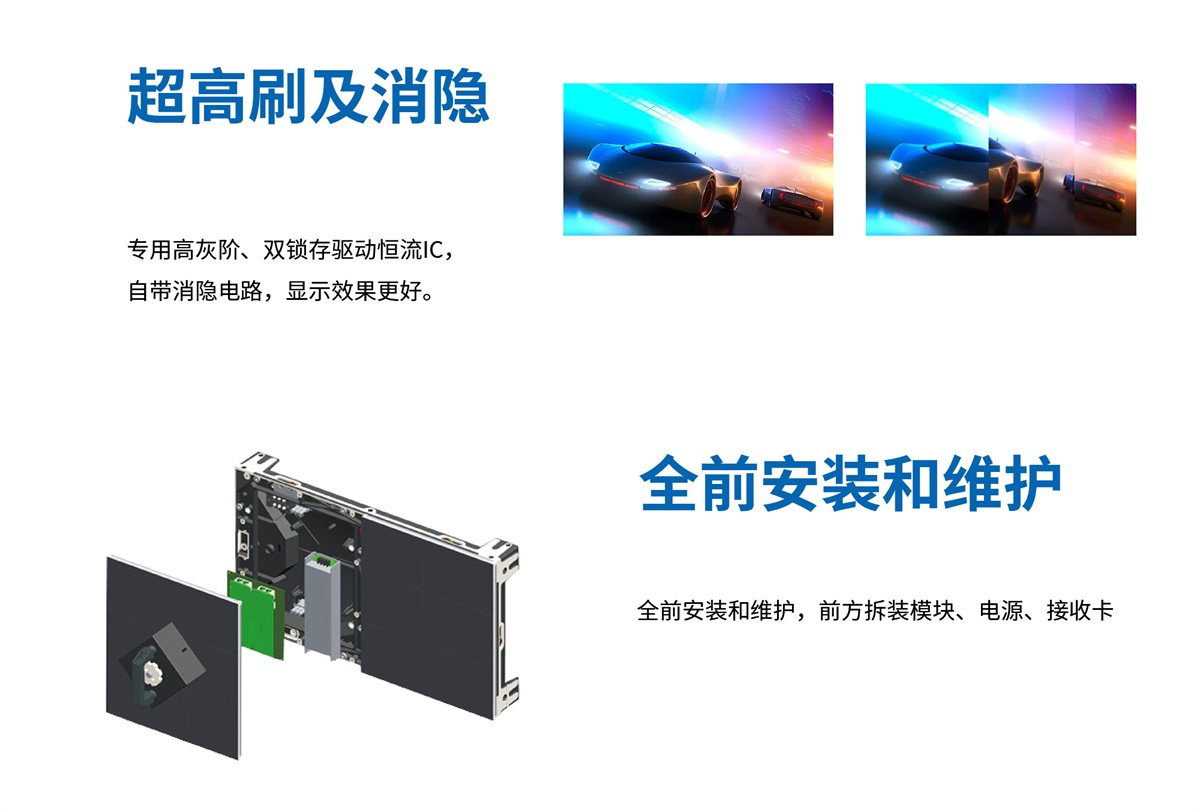

4.全前维护，，，，，，，高精度快锁拼装，，，，，，，省心省力。。。。。

铂莱国际(柬埔寨)官方网站

Model	DH12	DH15
Pixel Pitch(mm)	1.2	1.5
Module Resolution(W x H)	120x270	96x216
Module Size(mm)	150(W)×337.5(H)
Cabinet Resolution	480×270	348×216
Cabinet Size(mm)	600(W)×337.5(H)×40(D)
Cabinet Area(m?)	0.2025
Cabinet Weight (kg)	≤6.5
Physical Density(pixel/m?)	640,000	409,600
LED Type	1010	1010

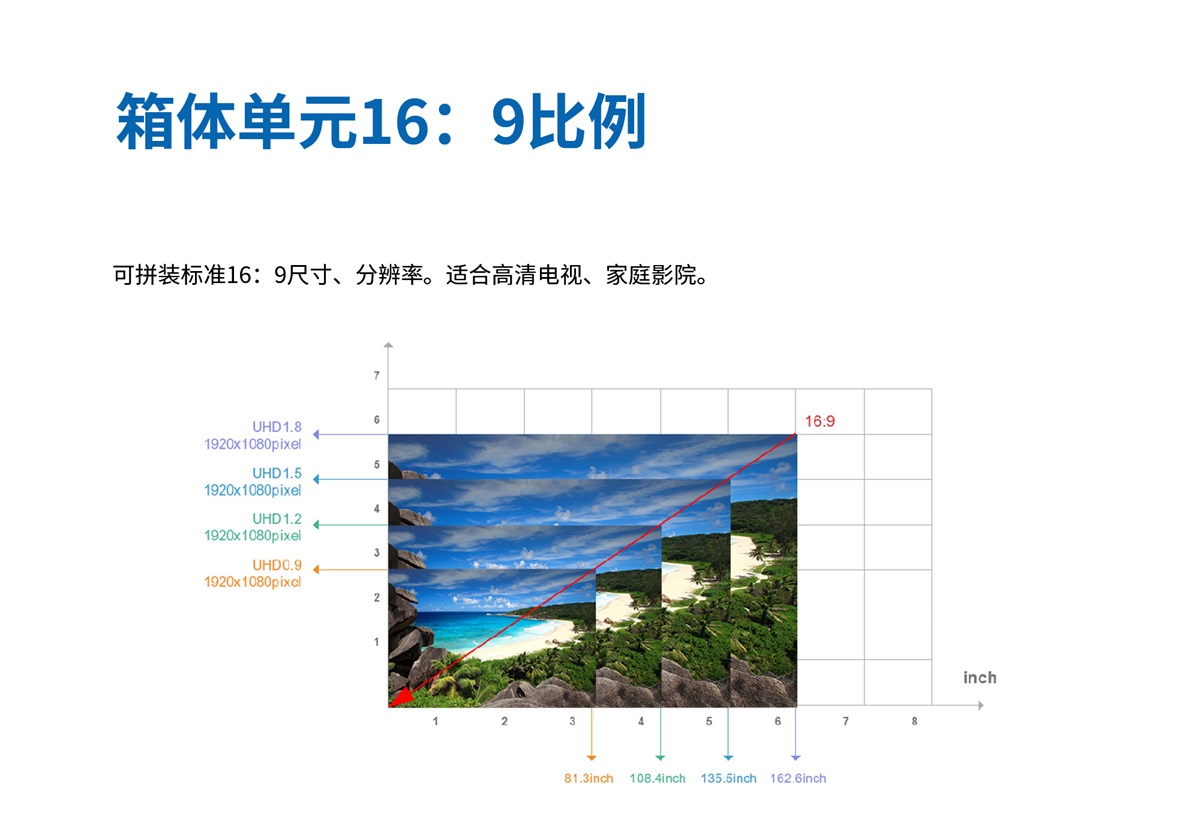

W:H	16:9
Cabinet flatness (mm)	≤0.1
Maintenance mode	Frontal Maintenance
Protection Grade	≥IP5X
Material	Die-cast aluminum / aluminum-magnesium alloy
Brightness (nits)	500 0-1000 adjustable,factory standard 500
Color Temperature(K)	500 ~ 10000 adjustable
View Angle	≥160°(W&H)
Center distance devlation of luminous point	＜1％
Brightness Uniformity	≥97%
Color Uniformity	≤±0.003Cx,Cy
Max. Contrast	≥7000:1
Working Consumption (w/㎡)	≤150
Max Power Consumption (w/m?)	≤650
Input Power Consumption(w/m?)	≥820
Input Voltage	220VAC ±5％
Frame Frequency（Hz）	30 - 120
Refresh Frequency（Hz）	≥3840
Grey Scale（bits）	14-18
Brightness control	Manual / Auto
Lifespan(h)	≥100，，，，，，，000hrs
Working/Store Temperature(°C)	-10°C ~ 40°C / -20°C ~50°C
Working/Store Humidity(RH)	10~60％ / 10~60％
